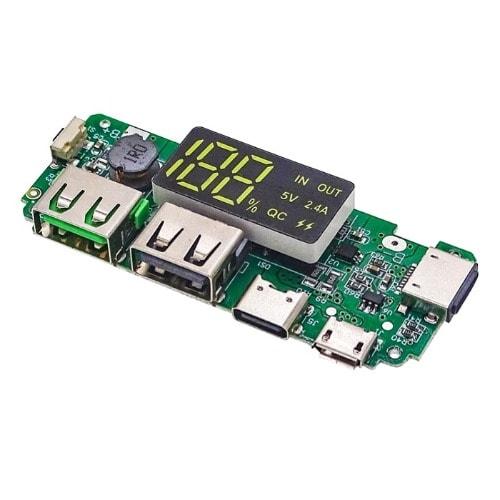

The 5V 2.4A Power Bank Module with Display is a compact, high-efficiency energy conversion board that transforms a single 3.7V lithium-ion battery into a portable power bank. It features multiple input interfaces—Type-C, Micro USB, and Lightning (Apple) for flexible charging options.

The onboard digital display provides real-time feedback of battery percentage and charging/discharging status, while the integrated protection circuitry ensures safe and reliable operation. A dedicated LED connection allows for flashlight functionality, making it a complete power solution for portable and DIY applications.

Key Features

• High Output Current: Provides a stable 5V, 2.4A output ideal for powering microcontrollers, sensors, and small electronics.
• Integrated Digital Display: Real-time battery percentage (0–100%) with IN/OUT indicators; double-click the button to wake the display from standby.
• Dual Functionality: Capable of charging the battery and powering external devices simultaneously.
• Comprehensive Protection: Built-in safeguards against overcharge, over-discharge, overcurrent, overvoltage, overheating, and short circuits.
• Plug-and-Play Output: Standard USB-A output for universal compatibility with most USB-powered devices.
• Compact Design: Lightweight and easy to embed in enclosures, portable systems, or DIY power projects.
• Flashlight Support: Optional LED connection for use as a flashlight—common in power bank designs.
• Battery Compatibility: Works with standard 3.7V 18650 lithium-ion or lithium-polymer cells.

Specification

• Input Voltage (Charging): 5V DC
• Output Voltage: 5V DC
• Maximum Output Current: 2.4A
• Battery Type: Single-cell 3.7V Li-ion / Li-Po (not included)
• Input Interfaces: Type-C, Micro USB, Lightning
• Output Interface: Dual USB-A ports (max combined 2.4A)
• Display Type: Digital LED or LCD (varies by model)
• Charging Efficiency: Greater than 90%
• Discharge Efficiency: Greater than 94%
• Dimensions: Approximately 65mm × 25mm × 5mm
• Operating Mode: Charge and discharge supported simultaneously.

Application

• DIY and custom-built power banks
• Battery-powered embedded or IoT systems
• Outdoor and wearable electronic projects
• Educational electronics and STEM learning kits
• Emergency and portable backup power supplies
